In electrostatics, the arrows indicating the direction of an electric field always point away from a positive charge and towards a negative charge. Think of it like water flowing from a source (positive) to a drain (negative).
Have you ever looked at diagrams of electricity and wondered about those little arrows? They seem to show the direction something is moving, but what exactly are they pointing to? It’s a common question, especially when you’re first learning about charges and how they interact. You might see arrows around a positive charge and wonder, “Do arrows point towards a positive charge?” The simple answer is no, but understanding why will make a big difference in how you grasp fundamental physics concepts. Let’s clear this up together in a way that’s easy to understand!
We’ll break down what these arrows really mean, why they point the way they do, and how this helps us understand electric forces. By the end, you’ll feel confident knowing how to interpret these important diagrams.
Understanding Electric Fields: The Invisible Force
Before we talk about arrows, let’s understand what an electric field is. Imagine a magnet. You don’t see the magnetic force, but you can feel it pulling or pushing other magnets. An electric field is similar; it’s an invisible area around an electric charge that can affect other charges. This field exerts a force on anything with an electric charge that enters it.
Think of it as the ‘influence’ of a charge. A positive charge creates an electric field around itself, and a negative charge does the same. Where these fields overlap, charges will interact.
What is Electric Charge?
At its core, everything is made of tiny particles. Some of these particles, like electrons, have a negative electric charge. Others, like protons, have a positive electric charge. Things like atoms can have a balanced number of positive and negative charges, making them neutral. When something has more of one type of charge than the other, it becomes either negatively charged (extra electrons) or positively charged (fewer electrons than protons).
This charge is what allows objects to interact through electric forces, similar to how magnets interact through magnetic forces.
Introducing Electric Field Lines
To help us visualize these invisible electric fields, scientists use something called electric field lines. These are imaginary lines drawn to show the direction and strength of the electric field in a region of space. They are a tool to help us understand the invisible forces at play.
The direction the lines point and how close together they are tells us a lot about the electric field. We’ll dive into what these lines specifically represent next.
Do Arrows Point Towards a Positive Charge? The Definitive Answer
Let’s get straight to the point: No, electric field arrows (or electric field lines) do not point towards a positive charge. They actually point away from positive charges.
Here’s why:
- Convention: Scientists and physicists have agreed on a standard convention to represent electric fields. This convention is based on how a positive test charge would behave.
- Positive Test Charge Behavior: Imagine you have a tiny, hypothetical positive charge called a “test charge.” If you place this positive test charge near a larger positive charge, it will be repelled and pushed away. The electric field lines show this direction of repulsion.
- Direction Away from Positives: Therefore, by convention, electric field lines originate from positive charges and point outwards, away from them. This indicates the direction in which a positive test charge would move if it were free to do so.
Think of a positive charge as a source or a fountain of electric influence. The influence spreads outwards in all directions.
Why the Confusion?
The confusion often arises because we sometimes think of “flow” or “direction” towards something. For instance, water flows towards a drain. However, in electricity, the convention is designed around what a positive entity would do. If you’re thinking about what a negative charge would do, then yes, they are attracted towards positive charges, and the field lines are pointing in that direction from the positive charge.
The Role of a “Test Charge”
To define the direction of an electric field at any point, we imagine placing a small, positive electric charge, known as a test charge, at that point. The electric field at that point is defined as the force that would act on this positive test charge, divided by the magnitude of the charge. The direction of this force is the direction of the electric field. Since like charges repel, a positive test charge will be pushed away from a positive source charge.
Arrows and Negative Charges: The Other Side of the Story
Just as arrows point away from positive charges, they point towards negative charges. This is the other half of the electric field line convention and is equally important to understand.
- Attraction to Negatives: If you place that same positive test charge near a negative charge, it will be attracted. It will move towards the negative charge.
- Field Lines Pointing In: Because of this attraction, electric field lines are drawn pointing inwards, towards the negative charge.
- The Destination: Negative charges act like sinks or drains for electric field lines.
This convention allows us to draw complete pictures of electric fields, showing how they interact between different types of charges.
Visualizing Field Lines Between Charges
When you have both positive and negative charges, the field lines show the overall pattern of the electric field. Lines will start at positive charges and end at negative charges. This creates curved lines showing the complex interactions.
For example, between a positive and a negative charge, the field lines would look like graceful arcs, originating from the positive charge and curving towards the negative charge. This visually represents the attraction between the two.
Strength of the Field: How Close the Arrows Are
The electric field isn’t just about direction; it also has strength. The density of the electric field lines—how close they are to each other—indicates the strength of the field. Where the lines are crowded together, the electric field is strong. Where they are spread apart, the field is weaker.
Why Electric Field Lines Are Important
Electric field lines are more than just pretty drawings. They are a powerful tool that physicists and students use to:
- Visualize Invisible Forces: They make the abstract concept of an electric field tangible and easier to grasp.
- Predict Charge Behavior: By looking at the field lines, you can predict how a charge (whether positive or negative) will move if placed in that field.
- Understand Complex Fields: They help map out the fields around multiple charges or complex objects, showing how fields combine and interact.
- Analyze Electric Potential: Field lines are closely related to electric potential, a concept that describes the energy a charge would have at a certain point in an electric field.
These lines are a fundamental concept in understanding electromagnetism, which is crucial for many technologies we use every day, like our smartphones and electric cars.
Analogy: Water Flow
A helpful analogy is to think of electric field lines like streamlines in a fluid flow. A source (positive charge) pushes fluid outwards, and a sink (negative charge) pulls fluid inwards. The streamlines show you the path the fluid would take. Similarly, electric field lines show the path a positive test charge would take.
Rules for Drawing Electric Field Lines
To ensure consistency and clarity, there are some standard rules for drawing electric field lines:
- Origin and End: Field lines originate from positive charges and terminate on negative charges. If isolated charges exist, lines may start or end at infinity.
- Direction: The tangent to a field line at any point gives the direction of the electric field at that point.
- Density: The density of field lines (number of lines per unit area) is proportional to the magnitude of the electric field. Where lines are closer, the field is stronger.
- No Crossing: Electric field lines never cross each other. If they did, it would mean the electric field has two different directions at the same point, which is impossible.
- Number of Lines: The number of lines originating from a positive charge or terminating on a negative charge is proportional to the magnitude of the charge.
Understanding these rules is key to correctly interpreting diagrams of electric fields.
Electric Field Lines Around Different Charge Configurations
Let’s look at how electric field lines behave in a few common scenarios:

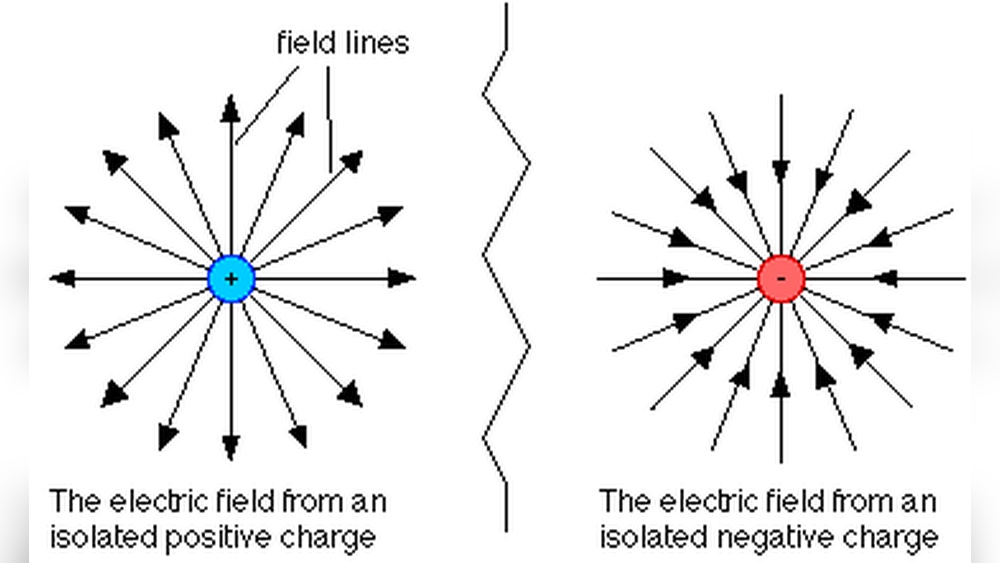

A Single Positive Charge
If you have only one positive charge, the electric field lines radiate outwards uniformly in all directions from the charge. Imagine the surface of a sphere centered on the charge; lines would be perpendicular to this surface and pointing away.
A Single Negative Charge
If you have only one negative charge, the electric field lines point inwards uniformly from all directions towards the charge. They all meet at the negative charge.
A Positive and a Negative Charge (Dipole)
This is a classic example. Field lines originate from the positive charge, curve outwards, and then bend to point towards the negative charge. They form arch-like patterns connecting the positive and negative charges. The field is strongest between the charges where the lines are most concentrated.
Two Positive Charges
When you have two positive charges, the field lines originate from both charges and spread outwards. However, in the region between the two charges, the repulsive nature of the field causes the lines to bend away from each other. They repel each other, creating a “null point” or a region of weaker field in between them if the charges are equal.
Two Negative Charges
This is similar to two positive charges, but the field lines point inwards towards each charge. In the region between them, the lines bend away from each other, indicating repulsion. They don’t meet or cross.
Table: Electric Field Line Behavior Summary
Here’s a quick summary to solidify your understanding:
| Charge Configuration | Field Line Direction | Description |
|---|---|---|
| Single Positive Charge (+) | Away from the charge | Lines radiate outwards uniformly in all directions. |
| Single Negative Charge (-) | Towards the charge | Lines converge uniformly from all directions. |
| Positive (+) and Negative (-) Charge (Dipole) | From + to – | Curved lines starting at + and ending at -, forming arcs. |
| Two Positive Charges (++) | Away from both charges, bending outwards between them | Lines originate from both, repelling each other in the central region. |
| Two Negative Charges (–) | Towards both charges, bending outwards between them | Lines converge towards both, repelling each other in the central region. |
Electric Field and Potential Difference
Electric fields are closely related to electric potential. Potential can be thought of as the “electrical pressure” at a point. Charges naturally move from areas of higher potential to areas of lower potential if they are free to do so.
For positive charges, they move from high potential to low potential. For negative charges, they move from low potential to high potential. The electric field lines always point in the direction of decreasing electric potential. This is why field lines point away from positive charges (high potential) and towards negative charges (low potential).
You can learn more about electric potential at reputable sources like the Siyavula Open Education or through resources from universities like Physics Catalyst explaining electric field lines.
How This Applies to Your Experiments and Understanding
Understanding electric field lines helps you predict how charged objects will interact. If you’re working with static electricity experiments, like rubbing balloons to make them stick to walls, the field lines help explain the forces involved.
Static Electricity Example
When you rub a balloon on your hair, electrons transfer from your hair to the balloon, giving the balloon a negative charge. The wall, normally neutral, has its electrons pushed away by the balloon’s charge, leaving the surface of the wall slightly positive. The electric field lines between the balloon and the wall would point from the wall towards the balloon (positive to negative), explaining the attraction.
Safety First!
In many contexts, especially in physics or engineering, dealing with electric fields means understanding potential hazards. High electric fields can be dangerous. Knowing that field lines originate from positive charges and point towards negative ones helps in designing electrical equipment safely. It helps engineers understand where electrical stress might be highest.
Frequently Asked Questions (FAQ)
Let’s tackle some common questions you might still have, in a clear, simple way.
Q1: So, if I see an arrow in an electric field diagram, does it mean a positive charge is moving that way?
A1: Not exactly! The arrow shows the direction of the electric field. By convention, this is the direction a positive test charge would be pushed or pulled. So, if an arrow points right, it means a positive charge would experience a force to the right.
Q2: Do electric field lines represent the path of electrons?
A2: No, they represent the direction of force on a positive charge. Since electrons are negatively charged, they actually move in the opposite direction of the electric field lines (towards a positive charge, away from a negative charge). Think of it this way: field lines point where positive charges would go, and negative charges like electrons go the other way.
Q3: Can electric field lines cross each other?
A3: Never! Electric field lines are like a single roadmap. At any specific point, the electric field can only have one direction. If lines crossed, it would imply two different directions for the field at the same spot, which isn’t physically possible.
Q4: What does it mean if electric field lines are close together?
A4: If the field lines are close together, it means the electric field is strong in that area. Think of it like traffic: when more cars are on the road (lines are dense), the traffic is heavy (field is strong). Where the lines are spread out, the field is weaker.
Q5: Why do we use imaginary lines to represent electric fields? Can’t we just measure the force?
A5: We can measure forces, but electric fields are invisible. Imaginary lines, called field lines, are a brilliant way to visualize these unseen forces. They help us understand the direction and strength of the field across an entire region, making it easier to learn and predict how charges will behave without having to plot countless measurements.
Q6: Are electric field lines the same as magnetic field lines?
A6: They are similar in that they both use lines to visualize invisible forces (electric fields for charges, magnetic fields for magnets/moving charges), and both have conventions for direction. However, electric fields are caused by electric charges, while magnetic fields are caused by moving electric charges (currents) and fundamental magnetic properties of materials. Their behavior and how they are generated differ.
Conclusion
We’ve journeyed through the world of electric fields and discovered exactly what those arrows in diagrams signify. The key takeaway is that arrows representing electric field lines point away from positive charges and towards negative charges. This convention, based on the hypothetical behavior of a positive test charge, is a fundamental tool for understanding how electric forces work. By visualizing these invisible fields, we can better predict how charges will interact, analyze complex electrical phenomena, and even approach safety in electrical design.
Whether you’re studying physics, experimenting with static electricity, or just curious about the forces that shape our world, grasping the concept of electric field lines will empower you. Remember the positive charge as a source pushing outwards, and the negative charge as a sink pulling inwards. This simple model will guide you through many complex concepts in physics. Keep exploring, keep asking questions, and you’ll find that the fascinating world of electricity becomes much clearer, one helpful diagram at a time!
