Arrow kinetic energy vs momentum: which matters most?
Kinetic energy is the speed check. Momentum is the penetration check, and once broadhead flight is tuned, momentum usually decides how well a hunting arrow drives through hide and bone. Skip that split and you can end up with a fast arrow that does not carry through impact, or a heavy arrow that drops too much and tunes badly at distance. This guide compares KE and momentum for recurve, compound, target, 3D, and hunting setups, with simple rules for choosing the right balance.
| Decision factor | Arrow kinetic energy | Momentum | Winner |
|---|---|---|---|
| Main job | Speed check and launch efficiency; measured in foot-pounds (ft-lbs) | How well the arrow keeps moving through resistance | Momentum |
| Best use case | Target, 3D, and flat-shooting compound setups | Hunting, especially when penetration matters more than raw speed | Tie |
| What it rewards | Higher speed | More mass | Tie |
| What it can hide | A light arrow can post a strong KE number and still underpenetrate | A heavy arrow can penetrate well and still feel slow or arc more | Tie |
| Tuning signal | Useful for comparing speed loss after changing point weight or shaft GPI | Useful for judging whether the setup is heavy enough for the target | Tie |

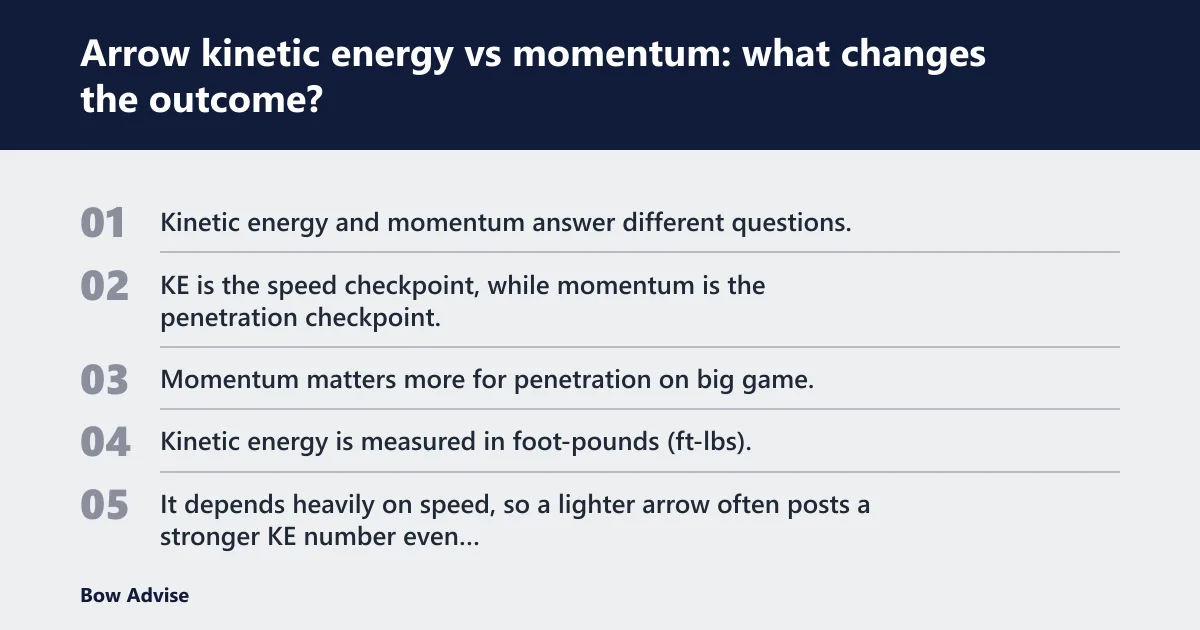

Arrow kinetic energy vs momentum: what changes the outcome?
Kinetic energy and momentum answer different questions. KE is the speed checkpoint, while momentum is the penetration checkpoint, and the best hunting setup needs both in workable range for an ethical shot. Momentum matters more for penetration on big game, but KE still matters because speed affects trajectory, sight marks, and broadhead forgiveness.
Kinetic energy in foot-pounds: the speed check
Kinetic energy is measured in foot-pounds (ft-lbs). It depends heavily on speed, so a lighter arrow often posts a stronger KE number even when total arrow mass is modest.
That makes KE useful for comparing bow setups and spotting speed loss after a change in point weight, shaft GPI, or brace-height-related tune changes. It is a benchmark, not a full answer.
Momentum: the penetration check
Momentum measures how well an arrow keeps moving through resistance, and it depends heavily on weight. Archery Pro Tools frames momentum as the combination of mass and velocity together, which is why heavier arrows usually carry more authority through hide, bone, and broadhead drag.
For hunting analysis, momentum is the more direct penetration metric. A balanced arrow needs enough KE and momentum for an ethical shot, but the penetration side of that balance is where heavier arrows usually help most.
Why the same arrow can score differently on each metric
The same arrow can look excellent on a speed-focused chart and ordinary on a penetration-focused one. That happens because KE favors velocity, while momentum gives more credit to mass. A setup built only to chase speed can look good on paper and still fail at real terminal performance.

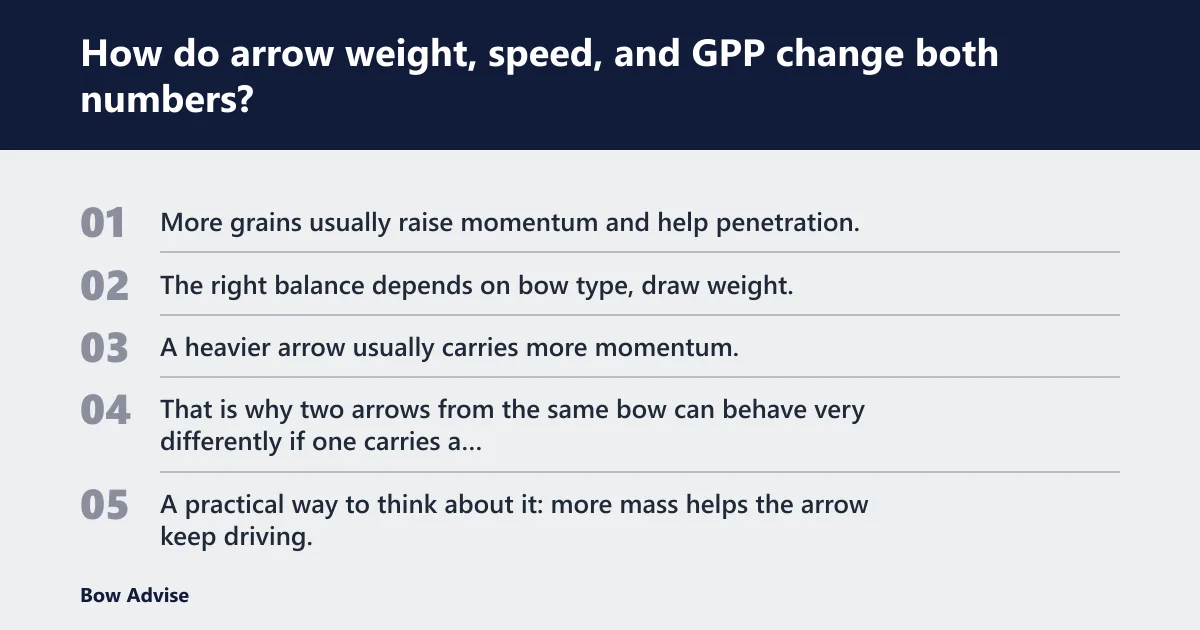

How do arrow weight, speed, and GPP change both numbers?
Arrow weight changes both metrics at once. More grains usually raise momentum and help penetration, while lower grains tend to raise speed and therefore KE. The right balance depends on bow type, draw weight, and what the arrow has to do after launch.
Arrow weight in grains and why it matters
Arrow weight is measured in grains. A heavier arrow usually carries more momentum, and the page’s guidance ties heavier arrows to stronger momentum and penetration. That is why two arrows from the same bow can behave very differently if one carries a heavier point or shaft.
A practical way to think about it: more mass helps the arrow keep driving, but too much mass can reduce speed enough that sight marks, gap shooting, or long-range hunting becomes less forgiving.
GPI, FOC, and broadhead mass
Arrow shaft GPI, or grains per inch, is one of the easiest ways to change total mass. Advanced Hunter says standard carbon arrows range from 8 to 10 grains per inch. Higher GPI increases overall arrow mass, which can improve momentum but also changes the tune and trajectory.
Front-of-center, or FOC, adds a front-weight bias. That often improves stability and can help penetration, especially in hunting builds paired with heavier broadheads. Cut-on-contact broadheads generally aid penetration, while heavier broadheads increase total arrow mass. Mechanical broadheads trade some of that for easier deployment and often less initial drag once they open.
Why light arrows raise speed while heavy arrows raise momentum
Light arrows usually leave the bow faster, so KE climbs. Heavy arrows usually leave slower, but momentum rises because the system carries more mass. That is why an arrow can be “fast” without being especially effective on tough targets, and “heavy” without being the best choice for every bow.
Bow speed rating matters here too. IBO speed is typically based on a standardized setup, so it works as a comparison reference rather than a guarantee of your actual arrow speed.
Kinetic energy vs momentum side by side
KE is the better speed benchmark. Momentum is the better penetration benchmark. In real use, neither metric should be treated as a solo answer, because broadhead flight, arrow mass, and target resistance all change the outcome after the shot leaves the string.
| Factor | Arrow kinetic energy | Momentum | Winner |
|---|---|---|---|
| What it measures | Energy carried by the moving arrow | How much moving mass the arrow carries | Tie |
| What it predicts well | Speed, flatter trajectory, and how hard a setup is hitting in ft-lbs | Penetration through resistance | Tie |
| Where it can mislead | A light arrow can post strong KE and still be poor on penetration | A heavy arrow can be hard to tune and slower at distance | Tie |
| Best fit | Compound target, 3D, and flat-shooting practice setups | Hunting, especially larger game or thicker arrows into tougher tissue | Momentum |
What each metric measures
KE is the speed-based number. Momentum is the mass-based number. Since momentum depends heavily on weight, it gives a clearer picture of how an arrow behaves after contact starts slowing it down.
What each metric predicts in real use
KE helps estimate trajectory, sight pin spacing, and how much speed a setup gives up as mass increases. Momentum helps estimate whether the arrow will keep driving, which matters more on thick hide, bone, and broadheads that add drag.
Where each metric can mislead archers
KE can flatter a light arrow that flies fast but gives up penetration. Momentum can flatter a heavy arrow that is difficult to tune or unhelpful for long-range target work. Archery Pro Tools recommends running both calculations for exactly that reason.
What setup details matter most for penetration?
Penetration starts with broadhead choice, shaft choice, and tune. Cut-on-contact broadheads help the arrow start work sooner, small-diameter shafts reduce wind resistance, and good spine plus FOC help keep the point tracking straight through impact. Weak broadhead flight usually shows up before terminal performance does.
Cut-on-contact vs mechanical broadheads
Cut-on-contact broadheads generally help penetration because they begin cutting immediately. Mechanical broadheads can be a valid tradeoff when flight forgiveness or a compact field-point style profile matters, but they may add deployment complexity and are not the simplest answer for maximum penetration.
Small-diameter shafts and wind resistance
Advanced Hunter notes that small-diameter shafts are more aerodynamic. That helps reduce wind drift and can improve penetration because the shaft presents less resistance through air and target media. It is one reason many hunting arrows pair smaller diameter with heavier total mass.
FOC, spine, and broadhead flight stability
FOC adds a front-weight bias, which usually helps stability and terminal line tracking. But it does not fix a badly matched spine. A weak tune can show up as broadhead wobble, poor grouping, or paper tears that grow worse when point weight changes.
For example, a 28-inch compound setup may group field points well but begin throwing broadheads left at longer range after a heavier insert is added. That is often a tune issue, not a “needs more KE” issue. The fix usually starts with spine, nock fit, or rest timing, then arrow mass.
Choose the right priority by bow type and use
The right priority changes with the bow and the job. Recurves often benefit from enough arrow mass to stay smooth and quiet, compounds can support more tuning variables, and target or 3D arrows usually favor speed and repeatable flight over penetration. Hunting pushes the balance toward momentum once the arrow is tuned.
| Bow type | Draw weight | Arrow mass or GPP | Intended use | Priority |
|---|---|---|---|---|
| Recurve | 40 lb | About 8 to 10 GPP | Field practice or small-game hunting | Momentum first, then KE |
| Compound | 50 lb | Advanced Hunter recommends 10 GPP | Deer hunting | Momentum first |
| Compound | 60 lb | Advanced Hunter recommends 8 GPP | Deer or elk hunting | Momentum first, with KE checked |
| Compound | 70 lb | Advanced Hunter recommends 6 GPP | Flat-shooting hunting setup | Split the difference; verify both metrics |
| Target recurve or compound | Any | Often lighter than hunting builds | Indoor or outdoor target | KE and flight tune first |
| 3D | Moderate | Often balanced for hold and trajectory | 3D scoring and forgiving trajectory | KE and trajectory first |
How draw weight and arrow mass shift the priority
Advanced Hunter gives 420 to 450 grains as a healthy balance, plus 6 GPP for a 70 lb bow, 8 GPP for a 60 lb bow, and 10 GPP for a 50 lb bow. Those are useful checkpoints, not laws. The more the draw weight rises, the more the setup can tolerate heavier arrows without becoming unwieldy.
For a compound hunter, 6 GPP may keep speed high enough for longer pins and flatter sight marks. For a lower-draw recurve, heavier arrows often help calm the bow and support penetration without chasing unrealistic speed.

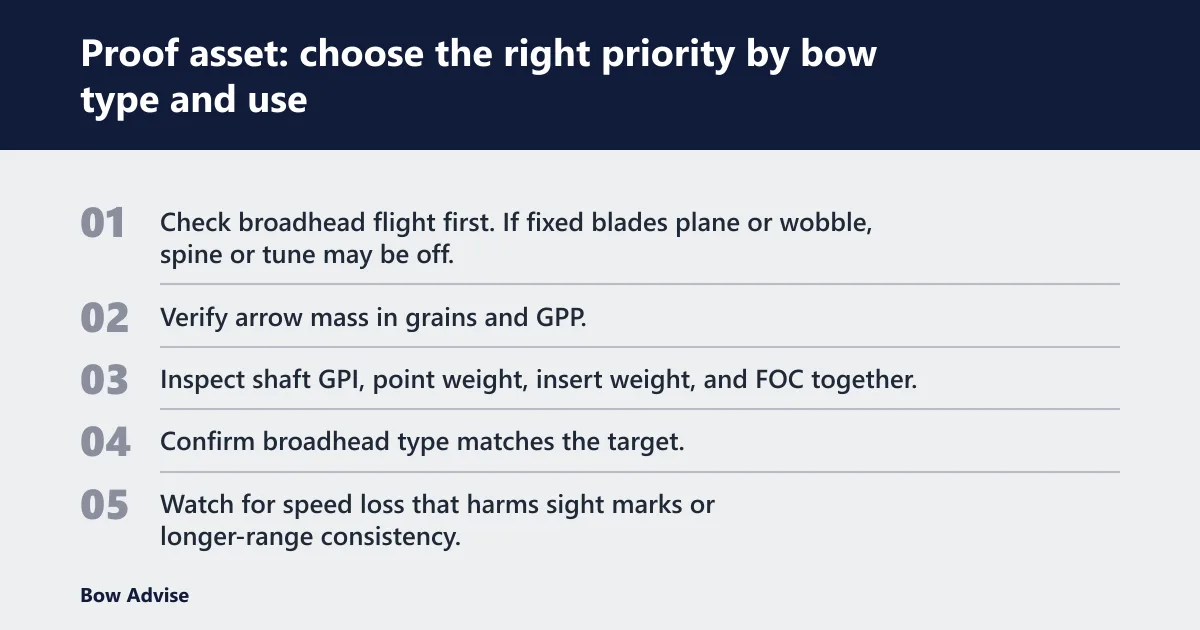

Failure-case checklist for underpenetration, weak flight, and speed loss
- Check broadhead flight first. If fixed blades plane or wobble, spine or tune may be off.
- Verify arrow mass in grains and GPP. Too light can cost penetration; too heavy can cost too much speed.
- Inspect shaft GPI, point weight, insert weight, and FOC together. A small change here can shift both KE and momentum.
- Confirm broadhead type matches the target. Cut-on-contact heads aid penetration; mechanicals may trade some of that for other benefits.
- Watch for speed loss that harms sight marks or longer-range consistency.
Say a bowhunter moves from a 5 GPP arrow to a noticeably heavier build and then sees a cleaner pass-through on a deer target bag, but the arrow drops more between 20 and 40 yards. That is a classic split: penetration improved, but the speed checkpoint moved the wrong way for the shooter’s distances.
Choose Arrow kinetic energy if… / Choose momentum if…
Choose kinetic energy if speed, flatter sight marks, and target or 3D trajectory matter most. Choose momentum if penetration, tough targets, and broadhead authority matter most. For hunting, momentum usually deserves the final word once the setup already flies cleanly.
Choose Arrow kinetic energy if…
Choose KE if you shoot target or 3D and care about flatter arrow flight. Choose it if you need to compare how much speed a point-weight change costs. Choose it if your arrow is already penetrating well and you want a better read on trajectory and distance forgiveness.
Choose momentum if…
Choose momentum if you hunt deer, elk, or other tougher game and want better penetration through resistance. Choose it if you are moving toward a heavier shaft, more FOC, or a cut-on-contact broadhead. Choose it when a broadhead-accurate arrow matters more than a flashy speed number.
When to split the difference
Split the difference when you want a hunting arrow that still shoots enough speed for usable sight marks. That is where many balanced builds land, including the 420 to 450 grain range noted by Advanced Hunter. The goal is not maximum KE or maximum momentum, but enough of both to keep the shot ethical and tunable.
Frequently asked questions
Does kinetic energy or momentum matter more for archery?
Momentum matters more for penetration, especially in hunting, while kinetic energy is better for judging speed and trajectory. A good arrow needs both, but the winning metric changes with use case. For target and 3D, KE often gets more attention; for hunting, momentum usually matters more after tune is correct.
How much arrow kinetic energy do I need for deer or elk?
There is no single KE number that replaces a clean tune and a proper broadhead. KE should be treated as a speed checkpoint, not a hunting promise. For deer or elk, a balanced arrow with enough KE and momentum for the shot, plus good broadhead flight, matters more than chasing one magic threshold.
How does arrow weight change momentum and penetration?
Heavier arrows increase momentum because momentum depends heavily on weight. That usually helps penetration, especially with broadheads and on tougher tissue. The tradeoff is lower speed, which can mean more drop and different sight marks at distance.
What is a good grains-per-pound arrow setup for hunting?
Common checkpoints are 5, 6, 8, and 10 GPP, with heavier hunting builds generally favoring more mass. Advanced Hunter recommends 6 GPP for a 70 lb bow, 8 GPP for a 60 lb bow, and 10 GPP for a 50 lb bow. The right band depends on the bow, broadhead, and game.
Should I focus on heavier arrows or faster arrows?
Focus on heavier arrows when penetration and arrow stability matter most. Focus on faster arrows when flatter trajectory, longer sight marks, or easier gap judgment matter more. For hunting, heavier is often the safer direction once broadhead flight is tuned and the setup still shoots cleanly.
Can I use both kinetic energy and momentum to tune my setup?
Yes. That is the better approach. Use KE to watch speed changes from point weight, shaft GPI, and total mass, then use momentum to judge whether the arrow still carries enough authority for the target. Archery Pro Tools recommends running both calculations for exactly that reason.
What arrow traits improve penetration besides weight?
Cut-on-contact broadheads, small-diameter shafts, and good FOC all help. Small-diameter shafts are more aerodynamic, which can reduce drag. Clean broadhead flight matters too, because a poorly tuned arrow wastes penetration even when the mass looks right on paper.
Why do light arrows sometimes group worse or penetrate less?
Light arrows can tune poorly if the shaft is too stiff or the broadhead is unforgiving. They also give up momentum, so penetration can suffer on harder impact. A light setup may shoot fast, but if it wobbles or planes, the grouping and terminal result both suffer.
