Bohning Arrow Fletching Jig Review: Worth It for Vanes?
Bohning arrow fletching jig is a strong pick for archers who want repeatable straight, offset, or helical fletching on standard carbon shafts, especially if simple setup matters more than chasing every degree of adjustment. Crooked vane placement wastes arrows, weak glue joints fail fast, and poor indexing can throw broadhead flight off. This review covers which Bohning jig fits recurve, compound, and bowhunting builds, plus vane size, shaft type, and when a cheaper or more adjustable jig makes more sense.

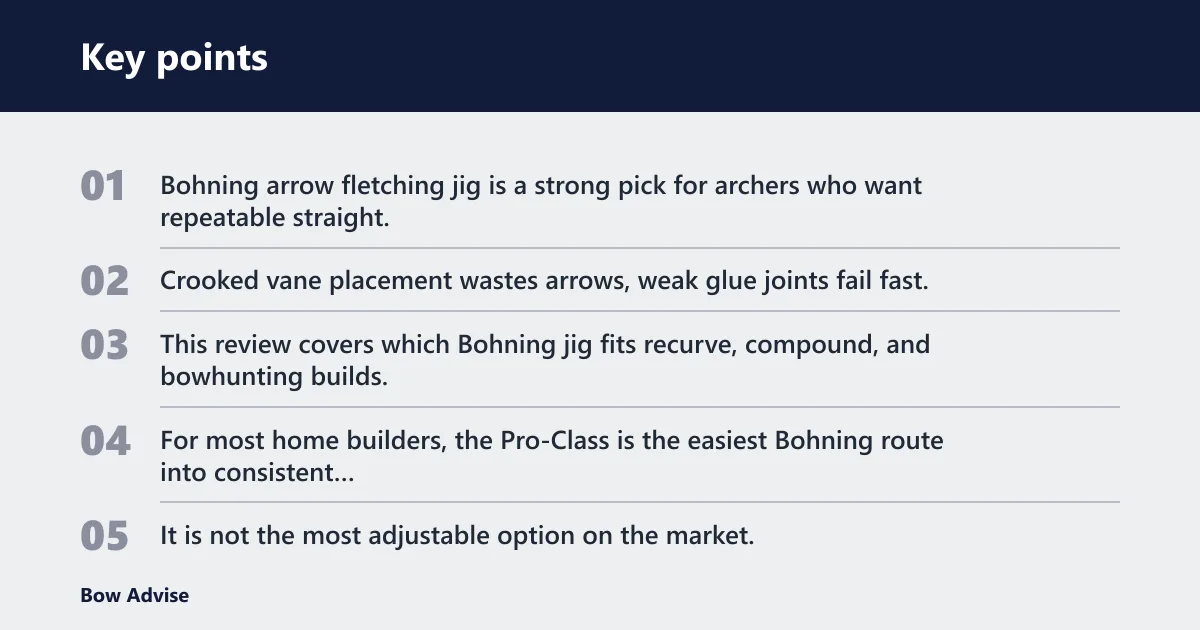

Verdict
- Adjustable for precise angle control
- Durable and easy to set up
- Works with most shaft types
For most home builders, the Pro-Class is the easiest Bohning route into consistent arrows without moving up to a more complicated shop fixture. It is not the most adjustable option on the market, and long vanes can be less forgiving in compact setups, but that tradeoff matters less for common hunting and practice shafts than for niche builds that need every possible angle choice.
📊 Bohning has been manufacturing from the same location in Lake City, Michigan since 1946. Source: Bohning.
Specs at a glance
| Model | What it is meant to do | Fletching style | Capacity | Notes |
|---|---|---|---|---|
| Bohning Pro-Class Complete Jig | Precision arrow fletching tool for vanes or feathers | Adjustable angle control | Single-arrow workflow | Good fit for repeatable home builds |
| Bohning 12962 Helix Tower Fletching Jig | Helix tower fletching jig for 3 vanes | Helical setup for 3 vanes | 3 vanes at once | Boasts precise 180° placement and maximum clamp pressure |
| ZE ZHAN-E ARCHERY Metal Fletching Jig | Iron fletching jig with helical and straight clamps | Straight and helical | 3 or 4 fletches | More of a budget metal option than a Bohning match |
Bohning’s current line includes vanes, nocks, fletching jigs, and other archery accessories. The company has made archery products from the same location in Lake City, Michigan since 1946, and Bohning says it has developed products over four generations. That matters here because the jig sits inside a broader vane system, not as a standalone tool.
In practical terms, the Pro-Class is the better fit for builders who want one jig to cover hunting arrows, recurve practice shafts, and routine home-shop production. The Helix Tower is more specialized. The budget metal competitor is the easier comparison point if price matters more than brand match or accessory ecosystem.
Who it is for
Bohning’s fletching jigs fit beginners building their first dozen arrows, bowhunters who want quiet hunting vanes, and home-shop archers who value a repeatable clamp position more than endless adjustment. It is less attractive for users who need highly custom vane spacing, frequent large-volume batching, or a jig that can mimic more advanced multi-angle systems.
Beginners building their first dozen arrows
For a first build, the Pro-Class is a safer start than freehand gluing because it fixes vane position, clamp pressure, and index repeatability. A beginner can learn vane placement without judging every degree by eye. That said, the jig still punishes sloppy glue use and poor shaft prep.
Bowhunters setting up quiet hunting arrows
Hunters usually care about vane drag, clearance, and broadhead stability. Bohning’s hunting vanes include Alpha, Atlas, Blazer, Heat, and X3, so the jig makes sense for standard carbon hunting shafts. A common first-timer mistake is choosing a large vane, then discovering tight rest or cable clearance on a compound bow.
Recurve and Olympic recurve builders
Bohning offers traditional recurve vanes for minimalist setups, and Bohning says those traditional recurve vanes are easy to fletch. That makes the jig useful for simple recurve arrows where quiet release and clean clearance matter more than raw spin. It is a sensible match for wood shafts and traditional-style carbon shafts alike.
Compound shooters and tight-clearance setups
Compound shooters benefit when the jig can keep vane placement consistent on short, high-speed arrows. Tight-clearance rests can demand lower-profile vanes, careful orientation, and cleaner glue lines. If the setup leaves very little room between the rest, launcher, and vane, an overly tall profile becomes a problem fast.
What works
The main strength of the Bohning approach is predictable alignment. A jig that repeats the same vane angle and clamp position cuts down on crooked fletches, and that matters because tiny setup errors stack up when you build a dozen shafts in a row. It also makes it easier to recover from a bad arrow without scrapping the whole build.
Alignment control and repeatability
Calibration is the point. If the clamp indexes the shaft the same way every time, the builder gets the same offset or helical relationship across the set. For recurves, that consistency matters because arrow flight can change when one vane sits a few degrees off line. For compounds, the issue is broadhead steering and clearance.
Speed for repeat builds
Once the setup is set, repeated arrows are faster than one-off hand fletching. That matters for home-shop production where a builder may need half a dozen hunting arrows or a practice batch in one sitting. The time saved is less about raw speed than about avoiding redo work.
Vane fit with Bohning profiles
Bohning’s vane families cover hunting and traditional use cases. The line includes Blazer, Alpha, Atlas, Air, Zen, X Vane, X3, and Heat. Alpha uses AR1250 material, and Bohning describes AR1250 as its stiffest and quietest material. Bohning also says AR1250 can provide maximum speeds when fletched at a 1 degree offset.
Use with carbon and wood shafts
Bohning recommends Blazer Bond or Fletch Fuse adhesives for best adhesion. Those choices make sense for carbon shafts, where surface prep and clean glue lines matter more than brute-force adhesive. Wood shafts can also work well, but they demand more attention to sealing, grain condition, and glue cure before handling.
What does not
The biggest weakness is forgiveness. A jig can hold the vane in the right place, but it cannot correct bad prep, poor insert angle choice, or a clamp that is slightly out of line. Long vanes are also less convenient on some jigs, especially when clearance in the clamp or tower gets tight.
Another drawback is that Bohning’s useful range is narrower than some higher-end multi-angle systems. A competitor review highlights a Multi-Fletcher with 7 angle inserts, which gives more flexibility than a simpler home jig. For builders who want every offset option, that extra range can matter.

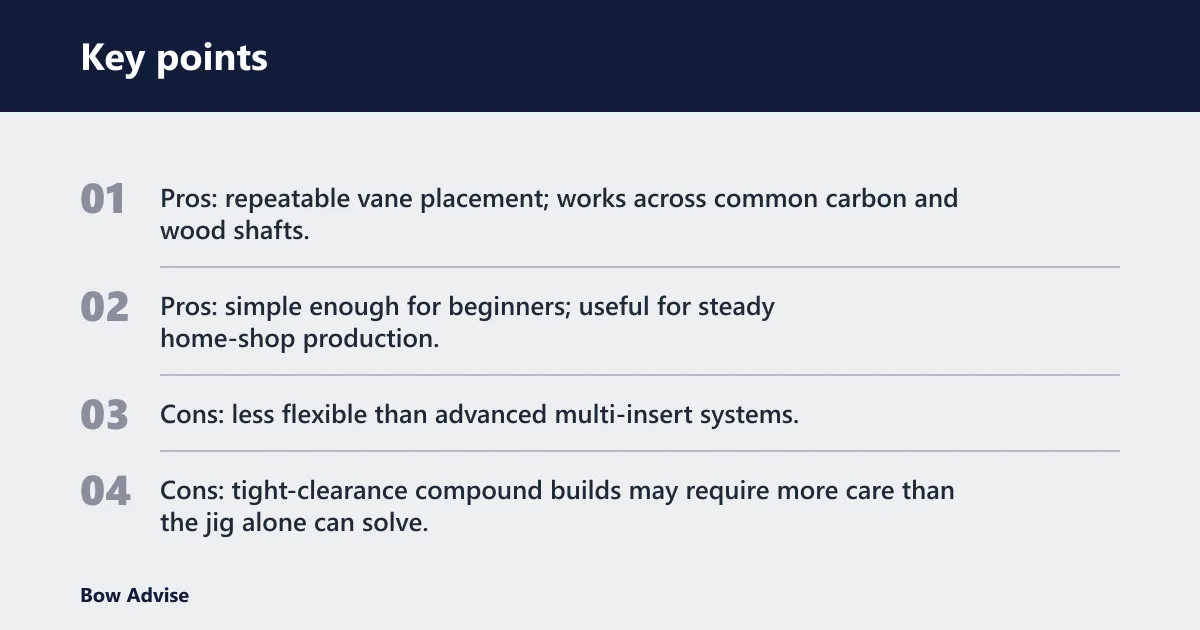

Pros and cons
- Pros: repeatable vane placement; works across common carbon and wood shafts; good match to Bohning vane families; practical for hunting and recurve builds.
- Pros: simple enough for beginners; useful for steady home-shop production; replacement parts and accessory support are part of the Bohning ecosystem.
- Cons: less flexible than advanced multi-insert systems; long vanes can be harder to manage; sloppy glue work still causes failures.
- Cons: tight-clearance compound builds may require more care than the jig alone can solve.

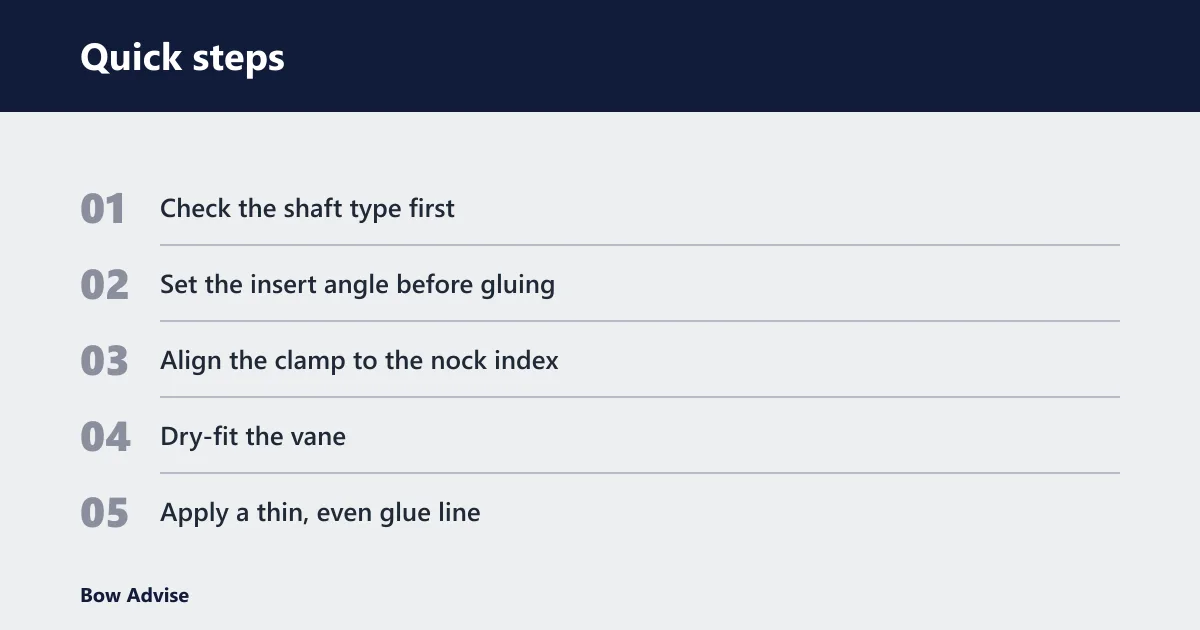

First-time setup and error recovery checklist
Say your first arrow has a vane that sits slightly off the shaft line, or the rear of the vane lifts after curing. That usually points to clamp misalignment, poor surface prep, or too much glue. The sequence below is the practical way to avoid that failure and diagnose it when it happens.
- Check the shaft type first. Carbon shafts need clean, dust-free surfaces. Wood shafts need a sound finish and no oily residue.
- Set the insert angle before gluing. Decide whether the build needs straight, 1 degree offset, or helical. Hunting arrows often benefit from more rotation, while tight-clearance compound builds may need a milder setup.
- Align the clamp to the nock index. Make sure the clamp references the same shaft orientation every time. A small error here shows up as uneven vane spacing and inconsistent broadhead flight.
- Dry-fit the vane. Confirm the vane sits flush with no rocking. If the leading edge lifts, the clamp or shaft prep is off.
- Apply a thin, even glue line. Blazer Bond and Fletch Fuse are Bohning’s recommended adhesives. Too much glue causes squeeze-out, slows cure, and can let the vane creep.
- Place the vane and close the clamp with steady pressure. Press only enough to seat the base. Excess force can push adhesive out from both ends.
- Hold the arrow level during curing. Rotation during cure can shift the vane and create a crooked rear edge.
- Inspect the front and rear of the vane. If one end is lifted, the clamp angle or vane profile is wrong for that shaft.
- Let the adhesive set fully before indexing the next vane. Premature handling is a common cause of vane creep.
- If misalignment appears, remove and restart early. A fresh vane is cheaper than trying to salvage a crooked one after partial cure.
Suppose a 3 inch hunting vane keeps touching the rest on a compound bow. The fix may not be the glue at all. It can be a vane-profile problem, a launcher-clearance problem, or an offset that is too aggressive for that rest geometry. The jig cannot solve those design limits on its own.
What vanes and glue work best?
Bohning vanes work best when the profile matches the arrow and the bow. The short answer is simple: lower-profile vanes for tighter compound clearances, stiffer and quieter material when hunting noise matters, and larger or more forgiving profiles when arrow speed is lower and clearance is easy.
Bohning vane families and profile choices
The hunting lineup includes Alpha, Atlas, Blazer, Heat, and X3. Bohning also offers traditional recurve vanes for minimalist setups. The smaller 2.0 inch, 2.8 inch, and 3 inch vanes are the usual hunting and general-purpose range, while 4 inch and 5.5 inch options are more about steering and traditional-style builds than compact compound clearance.
Blazer is the familiar low-profile hunting choice. Alpha is the more technical one, because its AR1250 material is designed around stiffness and quietness. Air and Zen sit closer to lighter, lower-drag use cases, while X Vane and X3 cover other field and hunting priorities. In practice, the profile matters as much as the brand name.
AR1250 material and stiffness tradeoffs
AR1250 is useful because it brings stiffness and low noise together. That can help when a vane must resist flutter yet remain quiet enough for hunting. The tradeoff is that stiffer material can demand a cleaner, more exact glue line. Bohning says Alpha uses AR1250, and it sells Alpha in 36-pack, 100-pack, and 1000-pack sizes.
Blazer Bond versus Fletch Fuse
Bohning recommends Blazer Bond or Fletch Fuse adhesives for best adhesion. That is the right starting point for carbon shafts and most Bohning vanes. For wood shafts, the same adhesives can work, but surface prep matters more than brand choice. A bad bond usually comes from dirt, oil, or too much glue, not the label.
Pre-primed vane compatibility
Pre-primed vanes are useful when the goal is speed, not experimentation. They shorten prep and help beginners keep the bond area consistent. That said, pre-primed surfaces still need the shaft side cleaned and aligned. They do not rescue a crooked clamp or a bad offset choice.
How does it compare with other ways to fletch?
Freehand fletching can work, but it depends on hand control and patience. A jig removes most of the guesswork from vane placement and helps keep arrow sets matched. Single-arrow jigs fit beginners and steady home builders, while more advanced systems make sense when the shop demands more angle choices or faster batch work.
Freehand fletching without a jig
How to fletch arrows without a jig: mark the shaft, use a straight reference line, apply a thin glue bead, and hold the vane in position until the bond grabs. This can work for emergency repairs or simple practice arrows, but it is slower and less repeatable than a jig. The risk of off-center placement is much higher.
Single-arrow jigs versus multi-arrow workflow
Single-arrow jigs keep setup simple and reduce the chance of a batch-wide error. Multi-arrow systems are better when volume matters. A builder making several hunting arrows for the same bow may value the single-arrow control more than throughput. A larger shop, or someone rebuilding multiple dozen shafts, may want the faster batch pattern.
When a more advanced jig makes sense
A more advanced jig makes sense when vane angles need to change often, or when a shooter wants more than one consistent setup across different bows. The review note about the Multi-Fletcher with 7 angle inserts points to that segment clearly. If the builder needs narrow calibration options, Bohning’s simpler route may feel limiting.
Should you buy it?
Buy a Bohning jig if the goal is consistent fletching for hunting arrows, recurve practice shafts, or a small home workshop that values predictable results. Skip it if the plan is to tinker with many odd angles, long vane experiments, or large-volume batch work that calls for a more advanced multi-insert system.
For most DIY archers, the Pro-Class is the best Bohning choice because it sits in the middle: easier than highly modular systems, more controlled than freehand, and practical for carbon shafts, wood shafts, and standard hunting profiles. The Helix Tower is the specialized option for users who want a 3-vane helix setup with a tighter focus.
Alternatives
- Fletches 3 vanes at precise 180⁰
- Maximum clamp pressure for vane adhesion
- Easy cleanup with acetone
The Bohning 12962 Helix Tower is the more specialized Bohning option. It is built for 3-vane helical work and is described as placing vanes at precise 180° spacing with maximum clamp pressure. That makes it a stronger fit for builders who already know they want helical spin and do not need broad all-purpose flexibility.
- Durable iron construction
- Adjustable for 3 or 4 fletches
- Includes straight and helical clamps
The ZE ZHAN-E ARCHERY metal jig is the budget contrast. It offers straight and helical clamps for 3 or 4 fletches and uses an iron body, so it appeals to value-focused builders who want a sturdy-feeling metal tool. The drawback is obvious: it is not the Bohning ecosystem, and support around vane matching is less direct.
Frequently asked questions
Is the Bohning arrow fletching jig worth buying?
Yes, if the goal is repeatable arrows without a steep learning curve. It is most worthwhile for hunters, recurve shooters, and home builders who want consistent vane placement on standard shafts. If you need lots of angle experiments or high-volume batching, a more advanced jig may be the better spend.
How do you fletch arrows without a jig?
Mark the shaft, keep the vane base aligned to the index line, use a thin adhesive layer, and hold the vane until it sets. That method works for simple repairs or emergency builds, but it is slower and less repeatable. Small alignment errors are harder to catch without a clamp reference.
What vanes work best with a Bohning jig?
Bohning’s own hunting vanes are the safest starting point: Blazer, Alpha, Atlas, Heat, and X3. For recurve or minimalist setups, Bohning’s traditional recurve vanes are a good fit. In tight compound clearances, lower-profile vanes usually make more sense than larger, taller profiles.
How many arrows can I fletch at once with Bohning jigs?
The Pro-Class is best thought of as a single-arrow workflow, while the Helix Tower is built for 3 vanes at once. That means the Pro-Class favors control and repeatability, while the Helix Tower favors a specific helical task. For larger batches, workflow speed depends more on setup discipline than raw capacity.
What is the difference between Bohning Pro Class and other Bohning jigs?
The Pro-Class is the general-purpose option for straight, offset, or helical setups on common shafts. The Helix Tower is more specialized for 3-vane helical work. In practice, the Pro-Class fits beginners and mixed arrow builds better, while the Helix Tower fits users who already want a narrow, fixed helical workflow.
Which fletching angle is best for hunting arrows?
For many hunting arrows, a small offset or moderate helical works well because it helps stabilize the shaft without creating unnecessary clearance problems. Bohning notes that AR1250 can provide maximum speeds when fletched at a 1 degree offset. On tight compound rigs, clearance should come before chasing more spin.
What glue should I use with Bohning vanes?
Bohning recommends Blazer Bond or Fletch Fuse for best adhesion. Those are the cleanest starting points for carbon shafts and most Bohning vane setups. For wood shafts, careful surface prep matters just as much as glue choice, because poor prep will still lead to vane creep or early failure.
Are Bohning vanes easy to fletch for beginners?
Yes, especially the traditional recurve vanes and the common hunting profiles. Bohning says its traditional recurve vanes are easy to fletch, and that makes sense for builders learning clamp pressure, glue amount, and vane alignment. Beginners still need to avoid squeeze-out and rushed cure times.
